cctv camera from China manufacturer - Hongkong Tengweida Electronic Co.,Ltd

Payment Terms:	TT, Western Union
Place of Origin:	Guangdong, China (Mainland)

Product Detail

Model No.: TWD-D202-II

Production Capacity: 5000/month

Delivery Date: 3-5days

Certificate: CE

Means of Transport: ship/air

Packing: color

Brand Name: Twida

Export Area: North America

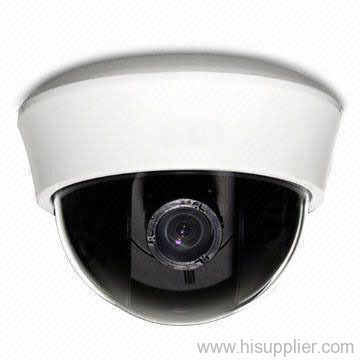

1/3" Sony 420TVL, 3-Axis Case, 6mm lens, Size: Φ128*91mm, DC12V

MODEL	TWD-D201-II	TWD-D202-II
Image Sensor	1/4" Sony Color CCD	1/3" Sony Color CCD
Horizontal Resolution	420TV Lines
Signal System	PAL/NTSC
Picture Pixels	PAL: 500(H) X 582(V), NTSC: 510(H) X 492(V)
Sync System	Internal Synchronization
S/N Ratio	>48dB
Lens	It doesn't include lens, can install fixed and varifocal lens
Electronic Shutter	PAL: 1/50 -1/100,000 Sec, NTSC: 1/60 -1/100,000 Sec
Gamma Collection	r=0.45
White Balance	AUTO
BLC	AUTO
AGC	AUTO
Minimum Illumination	1.0Lux/F1.2	0.8Lux/F1.2
Video Output	1.0Vp-p, 75Ω
Power Supply	DC12V+/-20%
Operation Temperature	-10℃~+50℃
Case	3-Axis Plastic case
Dimension	Φ128mm*91mm
